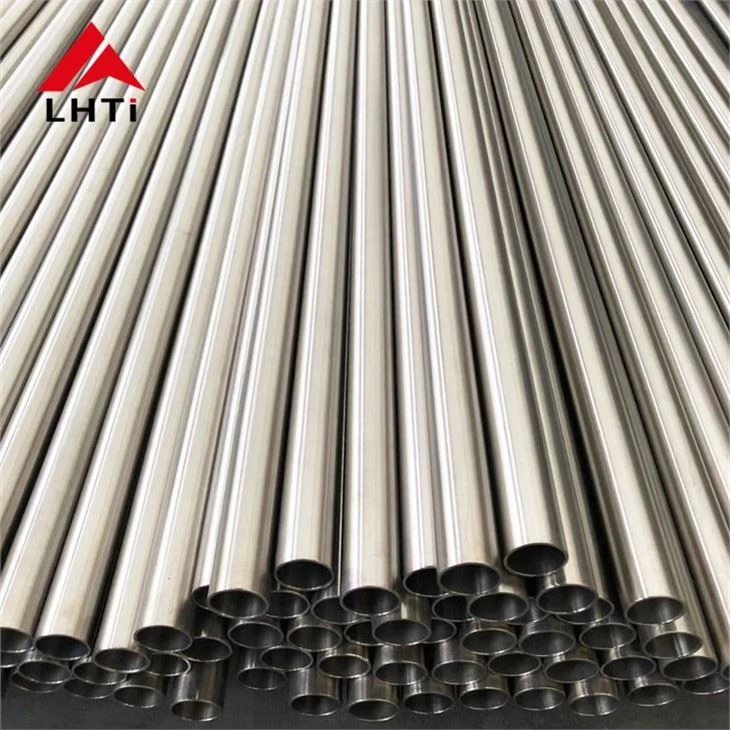

Gr2 Titanium Seamless Tube Rau Kub Exchanger
Txuj: ASTM B338
Khoom siv: Gr1, Gr2
Nqe: $25usd/kg-$40usd/kg
Hom: Welded / Seamless
Puab: Round
Sab nrauv: 9.52mm / 12.7mm / 15.9mm / 19mm / 21.7mm / 25.4mm / 32mm / 33.4mm / 38mm / 45mm thiab lwm yam.
Phab ntsa Thickness: {{0}} 5-3.0mm
Ntev: Max 12000mm
Nto: Bright
MOQ: 100kgs
Factory Thaj Chaw: 3000 ㎡
Cov neeg ua haujlwm hauv tuam txhab: 48
Cov Neeg Ua Haujlwm Pabcuam Txawv Tebchaws Txawv Tebchaws: 20
Tuam Tshoj tus kws tshaj lij Titanium yeeb nkab Chaw tsim tshuaj paus
Gr2 Titanium Seamless Tube Rau Kub Exchanger
Gr1 Gr2 muaj ntshiab titanium yeeb nkab txhua yam khoom thiab lub cev muaj zog zoo ib yam li cov yeeb nkab steel hlau. Nws yog zoo plasticity, yooj yim ua molding, yooj yim stamping, zoo vuam kev ua tau zoo. Nyob rau hauv cov huab cua thiab seawate, titanium yog nrog zoo corrosion kuj.The oxidation kuj tseem muaj zog dua stainless hlau, tab sis tsis tshua muaj kub kuj. Nws yog tsuas yog siv rau stamping qhov chaw thiab corrosion-resistant qhov chaw nrog me ntsis quab yuam tab sis siab plasticity, xws li aircraft skeleton, nkoj pipelines, li qub, tshav kub exchangers, distillation yees, txias cheeb tsam pab kiag li lawm, compressor li qub thiab hais txog. Cov khoom yas siab yuav tsum tau siv Gr1 titanium, thiab feem ntau siv yog Gr2 rau lwm qhov chaw.Gr2 Titanium seamless fube rau tshav kub exchanger yog raws li tus qauv ntawm ASTM B338, nrog nruj zoo thiab kev xeem yuav tsum tau. Cov titanium raj tsim los ntawm peb lub Hoobkas tuaj yeem ua tau raws li cov qauv thiab tuaj yeem siv tau zoo hauv kev lag luam kub exchanger.
Cov ncauj lus kom ntxaws
Khoom siv:gr1,g 2
Txheem:ASTM B 338 Cov
Loj:OD9.52mm / 12.7mm / 15.9mm / 19mm / 21.7mm / 25.4mm / 32mm / 33.4mm / 38mm / 45mm thiab lwm yam., WT0{17}} 0mm , L Max 12000mm
Phab ntsa thickness kam rau ua:ntxiv /- 10 feem pua
Ntev kam rau ua:ua 3.2mm
Hom:Welded / Seamless
Nto:Polishing, Pickling
Chemical muaj pes tsawg leeg (Wt%)
ASTM Nr. | Fe max | O max | N max | C max | H max | Pd | Al | Bal |
Qib 1 | 0.2 | 0.18 | 0.03 | 0.1 | 0.015 | - | - | Ti |
Qib 2 | 0.3 | 0.25 | 0.03 | 0.1 | 0.015 | - | - | Ti |
Lub cev muaj zog (Min)
ASTM Qib | Alloy Composition | Tensile zog | Yield zog | Elongation min feem | ||
ksi ua | Mpa | ksi ua | Mpa | |||
Qib 1 | Unalloyed Ti ("Ntshiab") 35A -CP1 | 35 | 240 | 25 | 170 | 30 |
Qib 2 | Unalloyed Ti ("Ntshiab") 50A -CP2 | 58 | 400 | 40 | 275 | 25 |
Cov duab khoom
Daim ntawv thov nyob rau hauv tshav kub exchangers:
Cov khoom siv raw
Hoobkas
Txheej txheem ntau lawm
Titanium sawb coil - Slitting forming - Vuam - Shaping thiab sizing - Thaum tshav kub kub kev kho mob - Straightening - Eddy tam sim no thiab ultrasonic xeem - Cua nruj kev ntsuam xyuas - Tiav welded yeeb nkab
Peb Tshuag
Kev soj ntsuam zoo
Txhua Qhov Kev Xeem
Visual Quality check
Dimension Check
Peneumatic test / Hydrostatic test
10 feem pua UT test
Tshuaj muaj pes tsawg leeg
Tensile xeem
Flaring test / flattening test
Kev kho cua sov
Test Report
Ntim
Hais txog peb lub tuam txhab
Txais tos tiv tauj peb txhua lub sijhawm!
