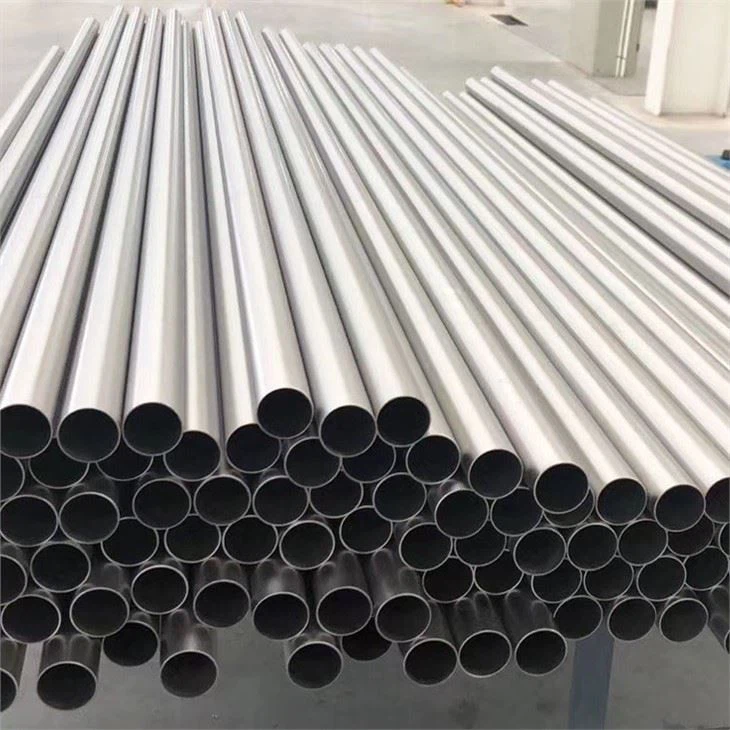

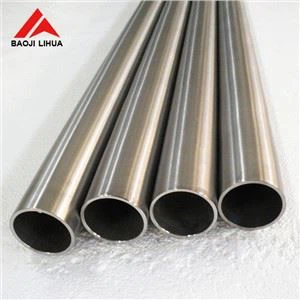

30mm Titanium Yeeb Nkab
Txuj: ASTM B338 ASTM B 861 ASTM B 862
Khoom siv: Gr1, Gr2
Chav Nqe: $ 25usd / kg- $ 40usd / kg
Hom: Welded / Seamless
Puab: Hloov
Txheej Txheej Sab Nrauv: 9.52mm / 12.7mm / 15.9mm / 19mm / 21.7mm / 25.4mm / 32mm / 33.4mm / 38mm / 45mm thiab lwm yam.
Phab Ntsa Thickness: 0.5-3.0mm
Ntev: Max 12000mm
Nto: Kaj lug, pickled
Titanium tubes yog lub teeb nyob rau hauv qhov hnyav, siab hauv lub zog thiab zoo dua hauv cov cuab yeej. Nws yog dav siv hauv cov khoom siv kho cua sov, xws li lub raj cua kub hloov hluav taws xob, coil heat exchanger, coiled tube heat exchanger, condenser, evaporator thiab conveying yeeb nkab, thiab lwm yam.
Khoom npe: 30mm Titanium yeeb nkab
Txuj: ASTM B338 ASTM B 861 ASTM B 862
Khoom siv: Gr1, Gr2
Hom: Welded / Seamless
Puab: Hloov
Txheej Txheej Sab Nrauv: 9.52mm / 12.7mm / 15.9mm / 19mm / 21.7mm / 25.4mm / 32mm / 33.4mm / 38mm / 45mm thiab lwm yam.
Phab Ntsa Thickness: 0.5-3.0mm
Ntev: Max 12000mm
Nto: Kaj lug, pickled
Cov khoom siv Qib | Cov xwm txheej | Ua | OD （mm） | Phab ntsa tuab （mm） | |||||||||||
0.5 | 0.6 | 0.8 | 1.0 | 1.25 | 1.5 | 2.0 | 2.5 | 3.0 | 3.5 | 4.0 | 4.5 | ||||
Gr1 Gr2 Gr7 Gr12 | Lees （M） | Mob khaub thuas kuav los tiag | 10-15 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | — | — | — | — | — |
﹥15-20 | — | ○ | ○ | ○ | ○ | ○ | ○ | ○ | — | — | — | — | |||
﹥20-30 | — | ○ | ○ | ○ | ○ | ○ | ○ | ○ | — | — | — | — | |||
﹥30-40 | — | — | — | — | ○ | ○ | ○ | ○ | — | — | — | — | |||
﹥40-50 | — | — | — | — | ○ | ○ | ○ | ○ | — | — | — | ||||
﹥50-60 | — | — | — | — | — | ○ | ○ | ○ | ○ | ○ | — | — | |||
﹥60-80 | — | — | — | — | — | — | ○ | ○ | ○ | ○ | ○ | ○ | |||
Welded | 16 | ○ | ○ | ○ | ○ | — | — | — | — | — | — | — | — | ||
19 | ○ | ○ | ○ | ○ | ○ | — | — | — | — | — | — | — | |||
25、27 | ○ | ○ | ○ | ○ | ○ | ○ | — | — | — | — | — | — | |||
31、32、33 | — | — | ○ | ○ | ○ | ○ | ○ | — | — | — | — | — | |||
38 | — | — | — | — | — | ○ | ○ | ○ | — | — | — | — | |||
50 | — | — | — | — | — | — | ○ | ○ | — | — | — | — | |||
63 | — | — | — | — | — | — | ○ | ○ | — | — | — | — | |||
Welded-kuav los tiag | 6-10 | ○ | ○ | ○ | ○ | ○ | — | — | — | — | — | — | — | ||
﹥10-15 | ○ | ○ | ○ | ○ | ○ | ○ | — | — | — | — | — | — | |||
﹥15-20 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | — | — | — | — | — | |||
﹥20-25 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | — | — | — | — | — | |||
﹥25-30 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | — | — | — | — | — | |||
Nco:" ○" qhia txog cov specifications uas tuaj yeem tsim | |||||||||||||||
1. Keeb kwm: Lub nroog Baoji - xeev Shaanxi, Suav
2. Cov Lus Qhia: Raws li cov qauv hauv tebchaws lossis cov neeg siv khoom xav tau thiab kos duab ua thiab ntau lawm.
3. Qhov zoo ntawm lub ntsej muag: nplaim yog huv thiab du tsis muaj tev, folding, pores, kab nrib pleb thiab lwm yam tsis xws luag.
4. Kev ntim: yas zaj duab xis, ua npuas dej, carton, ntoo ntoo thiab lwm yam ntim yoog raws cov qauv kev thauj mus los thoob ntiaj teb tau siv raws li cov lus qhia tshwj xeeb thiab qhov ntau thiab tsawg ntawm cov khoom muag.
Cov duab ntxaws ntxaws:
Ntim thiab xa khoom:
Kev kuaj xyuas thib peb:
Peb tuaj yeem muab ntau yam txheej txheem titanium tubes, xws li ASTM B337 ASTM B338, ASTM B 861, ASTM B 862 thiab lwm yam. Rau cov nqi loj ntawm cov xaj, ntau tus neeg muas zaub nyiam ua qhov kev kuaj thib peb ua ntej khoom xa tuaj, xws li TUV, SGS, BV. Peb tuaj yeem lees txais thiab cov neeg siv khoom txaus siab yog peb lub hom phiaj loj tshaj.
