Titanium Grade 7 Elbows
Titanium Pipe Fitting

Titanium Qib 7 Luj tshib

Khoom npe: Titanium qib 7 luj tshib
Txuj: ASME B16.9
Khoom siv: Gr1, Gr2, Gr7, Gr12
Nqe: $10usd/pc-$200usd/pc
Sab nraud txoj kab uas hla: 1/2"-48"
Phab ntsa Thickness: Sch5s-Sch160s
Cov txheej txheem: Seamless / Welded
MOQ: 10 pcs
Factory Thaj Chaw: 3000 ㎡
Cov neeg ua haujlwm hauv tuam txhab: 48
Pab neeg ua haujlwm pabcuam kev lag luam txawv teb chaws: 20
Tuam Tshoj tus kws tshaj lij titanium bar chaw tsim tshuaj paus

Xa kev nug

Khoom Taw qhia

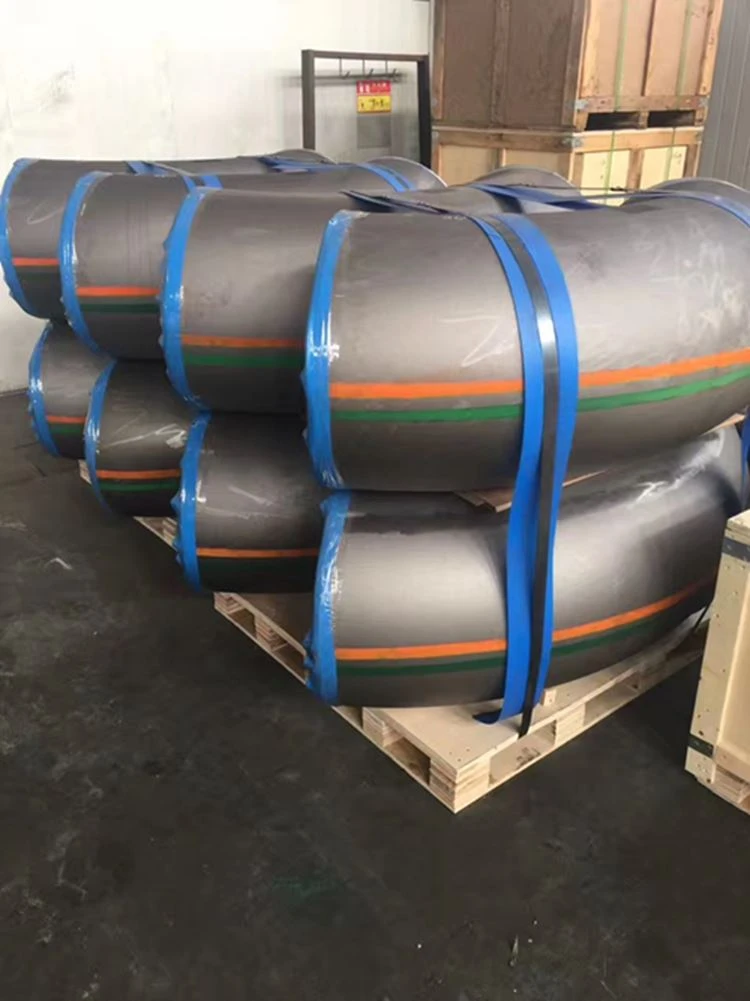

Titanium qib 7 luj tshib

Lub npe	Titanium luj tshib 90 degree 45 degree 180 degree
Khoom siv	Ntshiab titanium los yog titanium alloy Gr1, GR2, GR3, GR5, GR7, GR9, GR12
Loj	Sab nraud txoj kab uas hla	DN 10- 302 Los yog customizable
	Phab ntsa thickness	1-15mm Sch5s-Sch160
Txuj	ASTM B 363 3
Cov txheej txheem	Forged
Kev tswj kom zoo	X-ray detection (RT), Surface penetrant inspection (PT)

Functions thiab nta:

1. Lub luj tshib yog siv los nruab nruab nrab ntawm ob ntu ntawm cov yeeb nkab lossis cov yeeb nkab uas tso cai rau kev hloov pauv.

2. Txuag qhov chaw, txo qhov hnyav, nrog kev sib khi ua haujlwm.

3. Kev ntseeg tau nyiaj txiag.

Kev tsim cov txheej txheem ntawm titanium luj tshib:

1. Kub thawb txoj kev

Cov txheej txheem kub thawb lub luj tshib yog txheej txheem ntawm cua sov, nthuav dav thiab khoov lub tes tsho dawb paug ntawm qhov tuag nyob rau hauv lub laub ntawm lub tshuab thawb los ntawm kev siv lub luj tshib tshwj xeeb, cov tub ntxhais tuag thiab cov khoom siv cua sov.

2. Stamping txoj kev

Stamping forming luj tshib yog thawj txheej txheem siv nyob rau hauv batch zus tau tej cov seamless luj tshib. Nws tau raug hloov los ntawm kub thawb txoj kev los yog lwm yam txheej txheem nyob rau hauv zus tau tej cov specifications ntawm lub luj tshib. Txawm li cas los xij, nws tseem siv tau rau qee qhov tshwj xeeb ntawm lub luj tshib vim qhov tshwj xeeb yuav tsum tau ua rau cov khoom siv me me, tuab heev lossis nyias phab ntsa tuab. Cov yeeb nkab dawb paug sib npaug rau sab nraud ntawm lub luj tshib yog siv rau kev sib sau ntawm lub luj tshib, thiab cov xovxwm yog siv los nias ncaj qha rau hauv qhov tuag.

3.Medium phaj vuam

Siv lub phaj nruab nrab los ua ib nrab ntawm lub luj tshib nrog ib lub xovxwm, thiab tom qab ntawd txuas ob ntu ua ke.

Cov txheej txheem no feem ntau yog siv rau lub luj tshib saum DN700.

Qib 7 (Ti-0.2Pd) titanium luj tshib
Chemical compositions (qhov hnyav feem pua,<>
Pd	Al	V	Fe	C
0.12-0.25	----	----	0.30	0.08
N	H	O	Lwm yam (tag nrho)	Ti
0.05	0.015	0.2	0.4	Tseem tshuav
Physical properties(>=)
Σb Tensile zog (Mpa)	σr0.2 Yield zog (Mpa)	δL 0 plus 50mm Elongation (%)	ψ Kev txo qis ntawm cheeb tsam (%)
370	250	20	25
