Titanium Steel Composite Tube Phaj
Khoom siv: Titanium plus steel, Titanium plus stainless hlau thiab lwm yam.
Loj & Standard: Raws li tus neeg siv khoom kos duab
Txoj kev tsim khoom: Forging, annealing thiab machining
Advantage: Zoo heev corrosion kuj muaj peev xwm
Packing: Plywood case
Daim ntawv thov: Kub Exchanger, cov cuab yeej siv tshuaj, lub nkoj siab, cov khoom siv lim dej, thiab lwm yam.
Titanium Steel Composite Tube phaj
Lub npe | Clad Hlau | Base Hlau | Specification | Txuj | Daim ntawv thov |
Titanium-Steel Cladding phaj | TA1, TA2, TX9, TA10 | Q235, Q245R Q345R | Txheej hlau thickness: 0.5 ~ 50mm Lub hauv paus khoom thickness: 0.5 ~ 500mm | ASME, ASTM | petrochemical, nqus ntsev ua, Chlor-alkali, zaub mov, chiv, hydrometallurgy, electroplate thiab lwm yam. |
Cov ntawv thov tseem ceeb:
Titanium clad steel phaj raj daim ntawv yog tsuas yog siv nyob rau hauv ob yam: tshav kub exchanger raj ntawv thiab ua thawv phaj. Tag nrho cov tuab ntawm cov ntawv raj yog 75-100mm thiab lub thickness ntawm txheej yog 12-15 hli. Tag nrho cov thickness ntawm lub phaj phaj yog 19-25 hli thiab txheej thickness yog 2-3 hli. Titanium-steel clad phaj muaj ib daim ntawv thov kev cia siab nyob rau hauv kev tsim cov tshav kub exchanger raj ntawv, loj txoj kab uas hla (1800 mm) seamless lub taub hau thiab reactor.
Titanium clad steel phaj tube daim ntawv yog siv ntau nyob rau hauv lub reactor thiab terephthalic acid cog cov cuab yeej, nrog rau ethylene glycol, maleic acid thiab xeb tshem tawm cov khoom siv ntau lawm. Qee lub pas dej tauv ua haujlwm kub txog li 200 degree, lub siab sab hauv ntawm 9 MPa, cov khoom siv txoj kab uas hla ntawm 700 mm, ntev ntawm 1080 mm, thiab cov phaj sib xyaw thickness ntawm (2 ntxiv rau 15) mm.Rau cov khoom siv petrochemical kev khiav hauj lwm ntawm qhov kub siab thiab kub siab, cov hauv ob sab phlu yuav tsum muab cov cua kub zoo thiab yuav tsum tiv taus cov cua sov, qhov sib txawv ntawm qhov sib txawv thiab lwm yam kev ntxhov siab. Yog li ntawd, xoob hauv ob sab phlu los yog qhov chaw vuam ntxiv hauv ob sab phlu tsis txaus siab, tab sis titanium-steel clad phaj tuaj yeem ua tau raws li cov lus qhia saum toj no.
Titanium clad steel plates tube sheets yog siv tsis tau tsuas yog nyob rau hauv lub siab hlab ntsha, tshav kub exchangers thiab tubesheets, tab sis kuj nyob rau hauv cov nram qab no daim ntaub ntawv: A. ntim rau cov dej phwj hauv nroog, uas muaj chloride loj. B. chemical distillation tanks rau kev siv kub. C. cov thawv ntim dej thiab cov thawv ntim rau kev pov tseg pov tseg nuclear

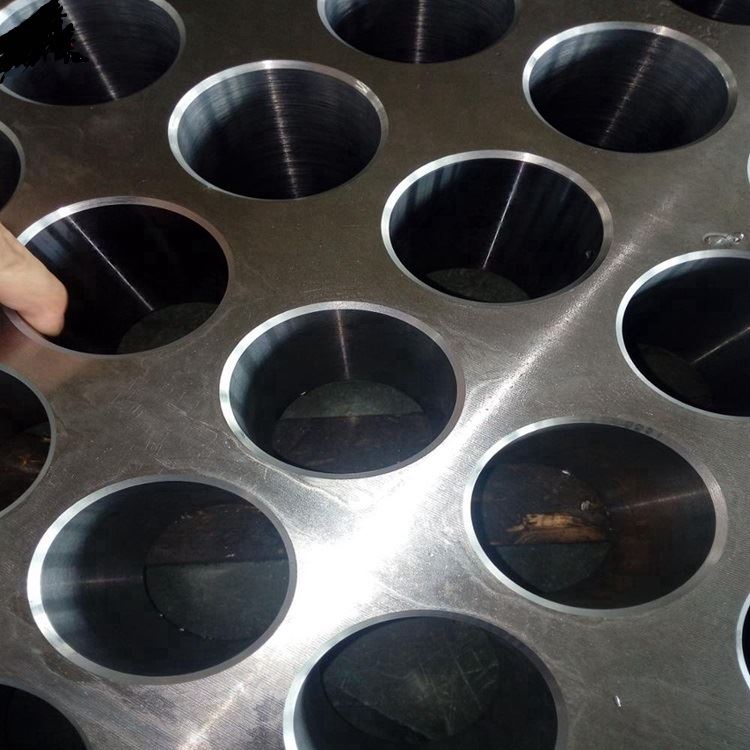

Cov duab ntxaws:
Titanium tube Sheet siv nyob rau hauv tshav kub exchanger:
Hais txog peb lub tuam txhab:
Packing thiab shipping:
Txais tos tiv tauj!
